Electric Drive Mecanum Wheels Heavy Duty 10 Inches

Electric Drive Mecanum Wheels

Mecanum Wheels Heavy Duty

10 Inches Mecanum Wheels

Certification:

Request A Quote

Product Details

Model NO.:

MW254

Transport Package:

Box Packing

Specification:

10inch

Origin:

China

HS Code:

8479909090

Supply Ability:

10000 Sets Per Month

After-sales Service:

Non Human Damage, Replacement Within Three Months

Warranty:

Control Mode:

Continuous Path Control

Drive Mode:

Electric

Application:

Condition:

New

Samples:

US$ 2500/Set 1 Set(Min.Order) | Request Sample

Customization:

Available | Customized Request

Payment & Shipping Terms

RELATED PRODUCTS

86-571-63106503

Contact Now

Product Description

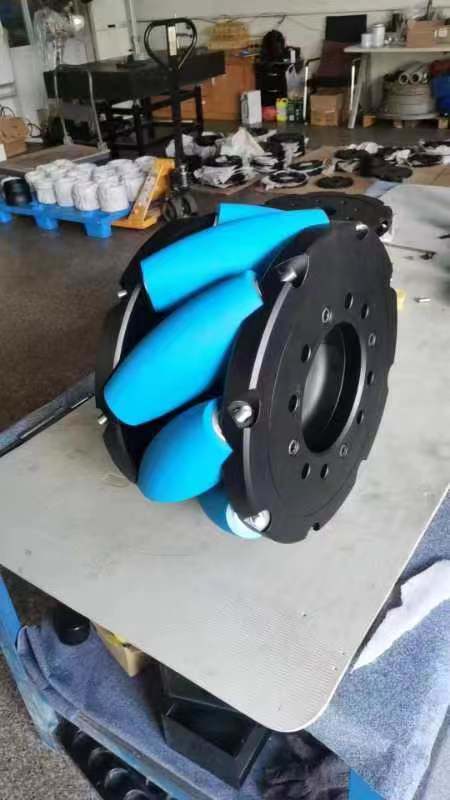

Mecanum Wheels Heavy Duty 10inches
10INCH MAXIMUM LOAD MCNANUM WHEELS

SPECIFICATION

Diameter(mm)	254
Width(mm)	128
Roller qty (pcs)	8
Variety of Bearings	2
Qty of Bearings	32
Material of side plates	Auminum Alloy 6061/7075
Materil of Roller	Casting Polyurethane
Mount Mode	Keyway or Flange
Max Static Payload (pcs/kg)	1500
Max Dynamic Load(pcs/kg)	1200

TECHNICAL DATA SHEET
Mecanum Wheels Heavy Duty 10inches
Product advantages and characteristics

Omni-directional movement; even sideways and spin rotation
Compact structure & easy for assembly
Strong & stable
Flexible & maneuverable

Product Application

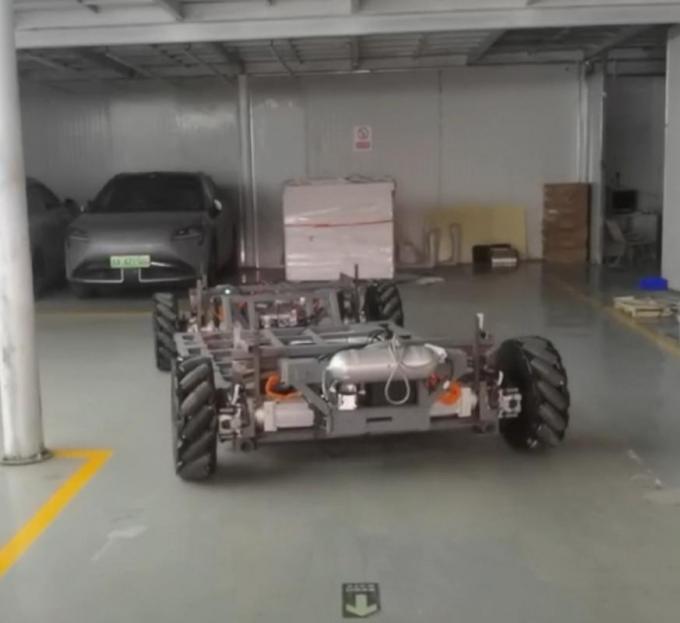

The precise control of mecanum motorized wheel makes it easy to operate even in a narrow and defined space, especially in the large-scale industry. It is widely used in mecanum wheel robot, mecanum drive robot, mobile robots, warehousing and logistics robots, AGV, AMR, intelligent parking equipment, intralogistics robots and other fields to meet the needs of different industries such as industrial, scientific research, commercial, medical, etc.

FAQs

1. What is included for one set mecanum wheels?
--One set mecanum wheels includes 4 pcs aluminum mecanum wheels.

2. Factory or trader?
--We have our own factory over 4000 square meter. Producing motorized mecanum wheels, hub motor, robot joint, mecanum robot, and exoskeleton robot.

3. What is the delivery time?
--About 15 days for samples. For mass production, please contact us for detailed information. Usually by air express FedEx, DHL, UPS...
