Name: 11 Inch 280mm Heavy Duty Mecanum Wheel
Brand: Hangzhou Fuyang Mykey Imp & Exp Co., Ltd.
Price: 2,000.00 USD
Availability: InStock

Home > products > Mecanum Wheel >

11 Inch 280mm Heavy Duty Mecanum Wheel

280mm mecanum wheel

280mm omni directional wheel

11 inch mecanum wheel

Certification:

Request A Quote

Product Details

Model NO.:

MW280

Transport Package:

Box Packing

Specification:

8inch

Origin:

China

HS Code:

8479909090

Supply Ability:

10000 Sets Per Month

After-sales Service:

Non Human Damage, Replacement Within Three Months

Warranty:

Control Mode:

Continuous Path Control

Drive Mode:

Electric

Application:

Condition:

New

Samples:

US$ 3000/Set 1 Set(Min.Order) | Request Sample

Customization:

Available | Customized Request

Payment & Shipping Terms

RELATED PRODUCTS

86-571-63106503

Contact Now

Product Description

11-inch 280mm medium duty Mecanum wheel
11 Inch 280mm Heavy Duty Mecanum Wheel 0

SPECIFICATION

Diameter(mm)	280mm
Width(mm)	145mm
Roller qty (pcs)	8
Variety of Bearings	2
Qty of Bearings	32
Material of side plates	Auminum Alloy 6061/7075
Materil of Roller	Casting Polyurethane
Mount Mode	Keyway or Flange
Max load (kgs/ser)	2500

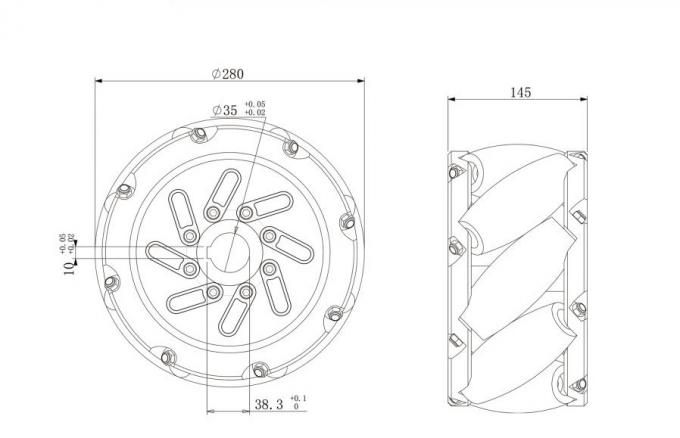

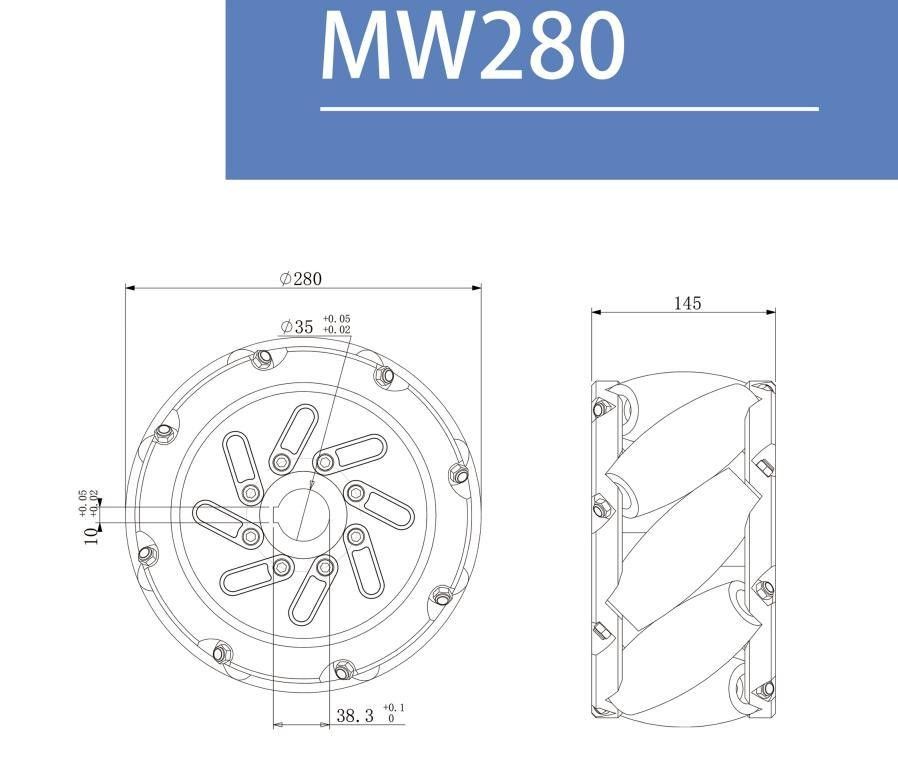

TECHNICAL DATA SHEET
11 Inch 280mm Heavy Duty Mecanum Wheel 1

Product advantages and characteristics

Omni-directional movement; even sideways and spin rotation
Compact structure & easy for assembly
Strong & stable
Flexible & maneuverable

Product Application

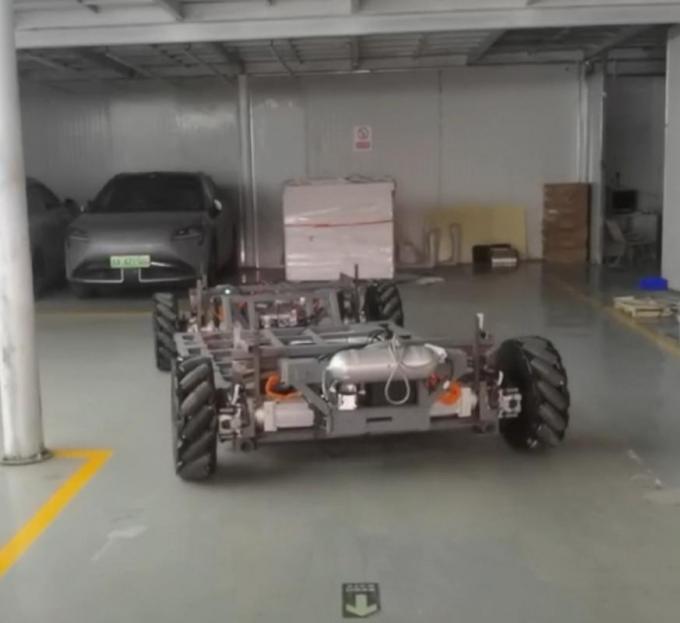

The precise control of mecanum motorized wheel makes it easy to operate even in a narrow and defined space, especially in the large-scale industry. It is widely used in mecanum wheel robot, mecanum drive robot, mobile robots, warehousing and logistics robots, AGV, AMR, intelligent parking equipment, intralogistics robots and other fields to meet the needs of different industries such as industrial, scientific research, commercial, medical, etc.

FAQs

1. What is included for one set mecanum wheels?
--One set mecanum wheels includes 4 pcs aluminum mecanum wheels.

2. Factory or trader?
--We have our own factory over 4000 square meter. Producing motorized mecanum wheels, hub motor, robot joint, mecanum robot, and exoskeleton robot.

3. What is the delivery time?
--About 15 days for samples. For mass production, please contact us for detailed information. Usually by air express FedEx, DHL, UPS.....
